TEA1-0505 Datasheet - TRACO POWER

TEA1-0505 DC/DC Converter

DC/DC Converter TEA 1 Series, 1 Watt Highly cost efficient design I/O isolation: 1’500 VDC Operating temperature range -40 to +85 °C without derating 5 VDC (±10%) input voltage range Unregulated outputs Efficiency up to 78% Industry standard SIP-4 package 3-year product warranty Models Order Code TEA 1-0505 Input Voltage Range 4.5 - 5.5 VDC (5 VDC nom.) The TEA 1 is an unregulated 1 Watt DC/DC SIP-4 converter se.

TEA1-0505-TRACO.pdf

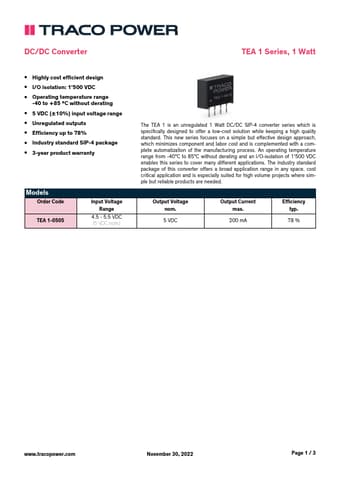

Preview of TEA1-0505 PDF
TEA1-0505 Datasheet Preview Page 2 TEA1-0505 Datasheet Preview Page 3

Datasheet Details

Part number:

TEA1-0505

Manufacturer:

TRACO POWER

File Size:

1.81 MB

Description:

Dc/dc converter.
