TEA1039

switched-mode power-supply

TEA1039 Features

* Suited for frequency and duty factor regulation.

* Suited for flyback converters and forward converters.

* Wide frequency range.

* Adjustable input sensitivity.

* Adjustable minimum frequency or maximum duty factor limit.

* Adjustable overcurrent pr

TEA1039 General Description

TEA1039 The TEA1039 is a bipolar integrated circuit intended for the control of a switched-mode power supply. Together with an external error amplifier and a voltage regulator (e.g. a regulator diode) it forms a complete control system. The circuit is capable of directly driving the SMPS power tra.

TEA1039 Datasheet (155.21 KB)

Preview of TEA1039 PDF

Datasheet Details

Part number:

TEA1039

Manufacturer:

NXP ↗

File Size:

155.21 KB

Description:

Switched-mode power-supply.

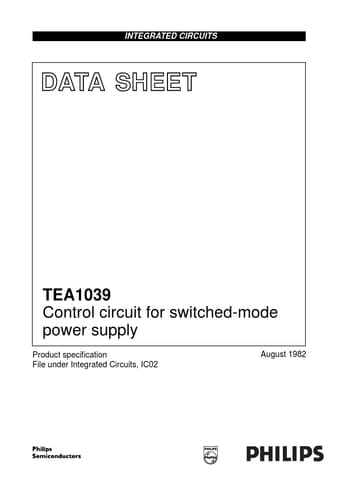

INTEGRATED CIRCUITS DATA SHEET TEA1039 Control circuit for switched-mode power supply Product specification File under Integrated Circuits, IC02 Augu.
