TEA1024 - Zero Voltage Switch

Description

The monolithic integrated bipolar circuit, TEA1024/ TEA1124 is a zero voltage switch for triac control in domestic equipments.

It offers not only the control of a triac in zero crossing mode but also the possibility of power control.

Features

  • D D D D D D Direct supply from the mains Definite IC switching characteristics Very few external components Full wave drive.
  • no dc component in the load circuit Current consumption ≤ 1.5 mA Output short circuit protected Package: DIP8 D D D D Simple power control Integrated ramp generator Reference voltage variable by external resistance Pulse position optimization Block Diagram 95 10871 D1 390 kW R2 (Rsync) R1 1N4007 22 kW/ 2W Load 1000 W L 7 1 56 kW Ramp generator TEA 1024.

📥 Download Datasheet

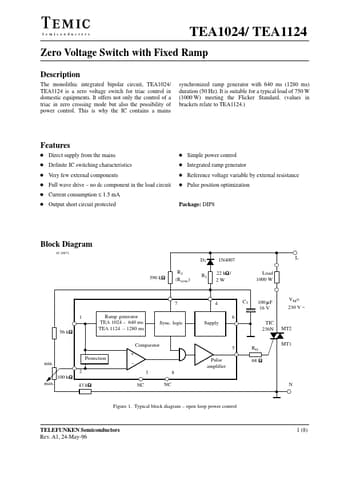

Datasheet preview – TEA1024

Datasheet Details

Part number TEA1024
Manufacturer TEMIC Semiconductors
File Size 114.91 KB
Description Zero Voltage Switch
Datasheet download datasheet TEA1024 Datasheet
Additional preview pages of the TEA1024 datasheet.

📁 Similar Datasheet

  • TEA1002 - PAL Colour Encoder and Video Summer (Mullard)
  • TEA1009 - TV and Radio Receiver (ITT)
  • TEA1014 - VIDEO AND AUDIO SIGNALS SWITCHING (ST Microelectronics)
  • TEA1017 - 13 BIT SERIES PARALLEL CONVERTER (ETC)
  • TEA1039 - switched-mode power-supply (NXP)
  • TEA1039 - Controller (Signetics)
  • TEA1045 - Telephone-Applications (ITT Semiconductors)
  • TEA1060 - VERSATILE TELEPHONE TRANSMISSION (ETC)
  • TEA1061 - VERSATILE TELEPHONE TRANSMISSION (ETC)
  • TEA1062 - Low voltage transmission (NXP)
Other Datasheets by TEMIC Semiconductors

Full PDF Text Transcription

Click to expand full text
TEA1024/ TEA1124 Zero Voltage Switch with Fixed Ramp Description The monolithic integrated bipolar circuit, TEA1024/ TEA1124 is a zero voltage switch for triac control in domestic equipments. It offers not only the control of a triac in zero crossing mode but also the possibility of power control. This is why the IC contains a mains synchronized ramp generator with 640 ms (1280 ms) duration (50 Hz). It is suitable for a typical load of 750 W (1000 W) meeting the Flicker Standard. (values in brackets relate to TEA1124.) Features D D D D D D Direct supply from the mains Definite IC switching characteristics Very few external components Full wave drive – no dc component in the load circuit Current consumption ≤ 1.
