TEA1014

VIDEO AND AUDIO SIGNALS SWITCHING

TEA1014 General Description

This integrated circuit provides all video and sound switching allowing connections between the periTV plug and video, sound sections in the TV set. Input and output signal characteristics follow the NFC 92250/EN 50049 norms. PIN CONNECTIONS ORDER CODE : TEA1014 GROUND EXTERNAL VIDEO OUTPUT INTERN.

TEA1014 Datasheet (82.64 KB)

Preview of TEA1014 PDF

Datasheet Details

Part number:

TEA1014

Manufacturer:

STMicroelectronics ↗

File Size:

82.64 KB

Description:

Video and audio signals switching.

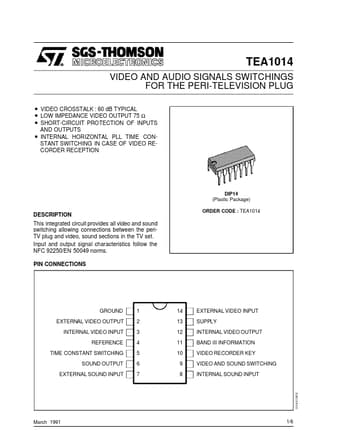

TEA1014 VIDEO AND AUDIO SIGNALS SWITCHINGS FOR THE PERI-TELEVISION PLUG . . . . VIDEO CROSSTALK : 60 dB TYPICAL LOW IMPEDANCE VIDEO OUTPUT 75 Ω SHOR.
