TEA-2025, TEA2025 Datasheet - ST Microelectronics

TEA-2025 STEREO AUDIO AMPLIFIER

The TEA2025B/D is a monolithic integrated circuit in 12+2+2 Powerdip and 12+4+4 SO, intended for use as dual or bridge power audio amplifier portable radio cassette players. Parameter Supply Voltage Ouput Peak Current Junction Temperature Storage Temperature Test Conditions 15 Unit V IO TJ Tstg .

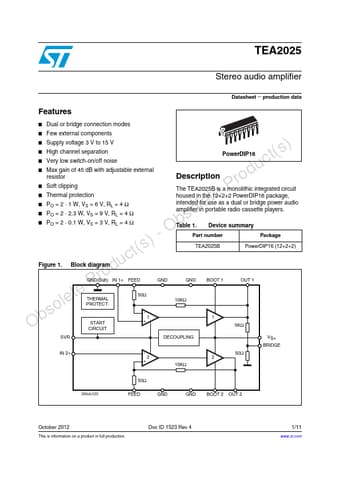

TEA2025B TEA2025D STEREO AUDIO AMPLIFIER DUAL OR BRIDGE CONNECTION MODES FEW EXTERNAL COMPONENTS SUPPLY VOLTAGE DOWN TO 3V HIGH CHANNEL SEPARATION VERY LOW SWITCH ON/OFF NOISE MAX GAIN OF 45dB WITH ADJUST EXTERNAL RESISTOR SOFT CLIPPING THERMAL PROTECTION 3V < VCC < 15V P = 2 1W, VCC = 6V, RL = 4Ω P = 2 2.3W, VCC = 9V, RL = 4Ω P = 2 0.1W, VCC = 3V, RL = 4Ω ABSOLUTE MAXIMUM RATINGS Symbol VS POWERDIP 12+2+2 SO20 (12+4+4) ORDERING NUMBERS: TEA2025B (PDIP) TEA2025D .

TEA2025_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: TEA-2025, TEA2025. Please refer to the document for exact specifications by model.
TEA-2025 Datasheet Preview Page 2 TEA-2025 Datasheet Preview Page 3

Datasheet Details

Part number:

TEA-2025, TEA2025

Manufacturer:

STMicroelectronics ↗

File Size:

141.71 KB

Description:

Stereo audio amplifier.

Note:

This datasheet PDF includes multiple part numbers: TEA-2025, TEA2025.
Please refer to the document for exact specifications by model.
