TEA0676

Dual pre-amplifier and equalizer for reverse tape decks

TEA0676 Features

* Dual head pre-amplifiers

* Reverse head switching

* Equalization with electronically switched time constants

* Output level like Dolby level of 387.5 mV = 0 dB

* Improved EMC behaviour. GENERAL DESCRIPTION TEA0676T The TEA0676T is a monolithic bipolar inte

TEA0676 General Description

TEA0676T The TEA0676T is a monolithic bipolar integrated circuit intended for applications in car radios. It includes head and equalization amplifiers with electronically switchable time constants. Furthermore it includes electronically switchable inputs for tape drivers with reverse heads. The de.

TEA0676 Datasheet (163.51 KB)

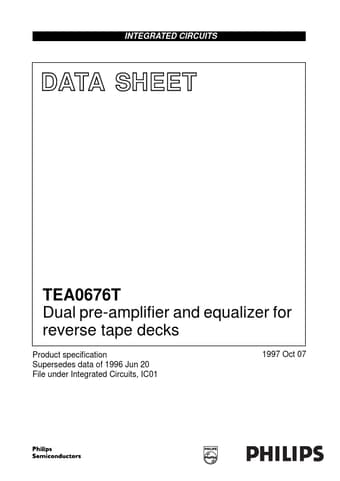

Preview of TEA0676 PDF

Datasheet Details

Part number:

TEA0676

Manufacturer:

NXP ↗

File Size:

163.51 KB

Description:

Dual pre-amplifier and equalizer for reverse tape decks.
INTEGRATED CIRCUITS DATA SHEET TEA0676T Dual pre-amplifier and equalizer for reverse tape decks Product specification Supersedes data of 1996 Jun 20 .
