TEA1755LT Datasheet - NXP

TEA1755LT, HV start-up DCM/QR flyback controller

TEA1755LT HV start-up DCM/QR flyback controller with integrated DCM/QR PFC controller Rev.1.1 * 13 March 2015 Product data sheet 1.Gener.
The GreenChip is the latest generation of green Switched Mode Power Supply (SMPS) controller ICs.

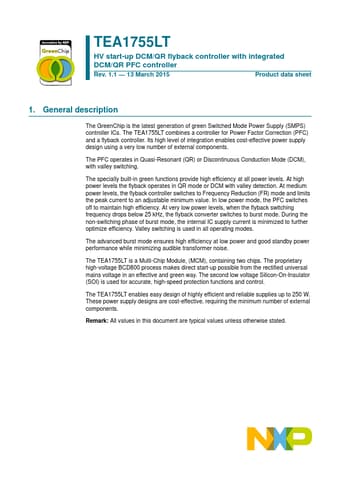

datasheet Preview Page 1 from Datasheet4u.com

TEA1755LT-NXP.pdf

TEA1755LT Datasheet Preview — Preview of TEA1755LT PDF

Datasheet Details

Part number:

TEA1755LT

Manufacturer:

NXP ↗

File Size:

295.44 KB

Description:

HV start-up DCM/QR flyback controller

Features

* 2.1 Distinctive features
* Integrated PFC and flyback controller
* Universal mains supply operation between 70 V (AC) to 276 V (AC)
* Dual-boost PFC with accurate maximum output voltage (NXP Semiconductors patented)
* High level of integration, results in cost-effective designs with

Applications

* The device can be used in all applications requiring an efficient and cost-effective power supply solution for up to 250 W. Notebook adapters in particular benefit from the high level of integration 4. Ordering information Table 1. Ordering information Type number Package Name Descriptio
