TEA2017AAT

Digital configurable LLC and multimode PFC controller

TEA2017AAT Features

* 2.1 Distinctive features

* Complete functionality of a PFC and LLC controller in a single small-size SO16 package

* Integrated high-voltage start-up

* Integrated drivers and high-voltage level shifter (LS)

* High-side driver directly supplied from the low-side driver

TEA2017AAT General Description

The TEA2017AAT is a digital configurable LLC and PFC combo controller for highefficiency resonant power supplies. It includes the LLC controller and PFC controller functionality. The PFC can be configured to operate in DCM/QR, CCM fixed frequency, or multimode which supports all operation modes to o.

TEA2017AAT Datasheet (581.63 KB)

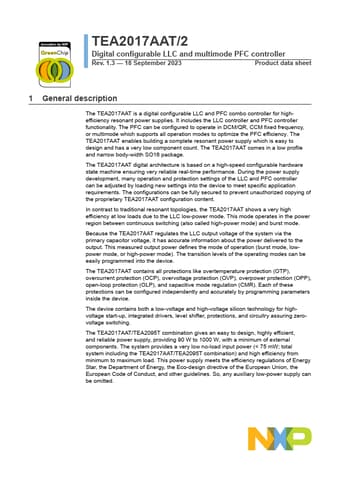

Preview of TEA2017AAT PDF

Datasheet Details

Part number:

TEA2017AAT

Manufacturer:

NXP ↗

File Size:

581.63 KB

Description:

Digital configurable llc and multimode pfc controller.
