TEA2016AAT

Digital controller

TEA2016AAT Features

* 2.1 Distinctive features

* Complete functionality of LLC and PFC controller in single small-size SO16 package

* Integrated high-voltage start-up

* Integrated drivers and high-voltage level shifter (LS)

* High-side driver directly supplied from the low-side driver outp

TEA2016AAT General Description

The TEA2016AAT is a digital configurable LLC and PFC combo controller for high-efficiency resonant power supplies. It includes both the LLC controller functionality and PFC controller operating in DCM and QR mode. The TEA2016AAT enables building a complete resonant power supply, which is easy to des.

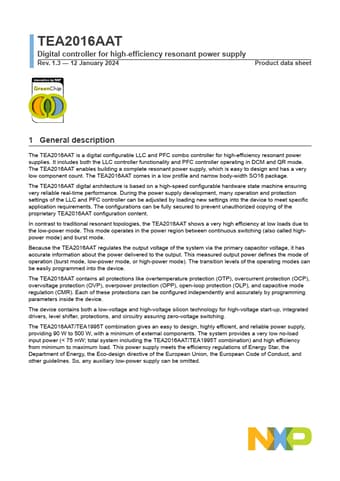

TEA2016AAT Datasheet (878.79 KB)

Preview of TEA2016AAT PDF

Datasheet Details

Part number:

TEA2016AAT

Manufacturer:

NXP ↗

File Size:

878.79 KB

Description:

Digital controller.
