TSA5060A

1.3 GHz I2C-bus controlled low phase noise frequency synthesizer

TSA5060A Features

* Complete 1.3 GHz single chip system

* Optimized for low phase noise

* Selectable divide-by-two prescaler

* Operation up to 1.3 GHz without divide-by-two prescaler

* Selectable reference divider ratio

* Compatible with UK-DTT (Digital Terrestrial Tele

TSA5060A General Description

The TSA5060A is a single chip PLL frequency synthesizer designed for terrestrial and cable tuning systems up to 1.3 GHz. The RF preamplifier drives the 17-bit main divider enabling a step size equal to the comparison frequency, for an input frequency up to 1.3 GHz covering the complete terrestrial f.

TSA5060A Datasheet (119.19 KB)

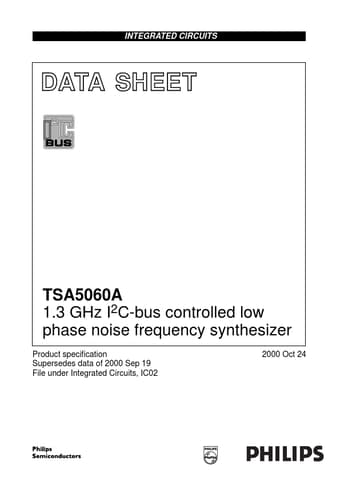

Preview of TSA5060A PDF

Datasheet Details

Part number:

TSA5060A

Manufacturer:

NXP ↗

File Size:

119.19 KB

Description:

1.3 ghz i2c-bus controlled low phase noise frequency synthesizer.
INTEGRATED CIRCUITS DATA SHEET TSA5060A 1.3 GHz I2C-bus controlled low phase noise frequency synthesizer Product specification Supersedes data of 200.
