TZA1015 - Data amplifier and laser supply circuit for CD and read-only optical systems HDALAS

NXP

📥 Download Datasheet

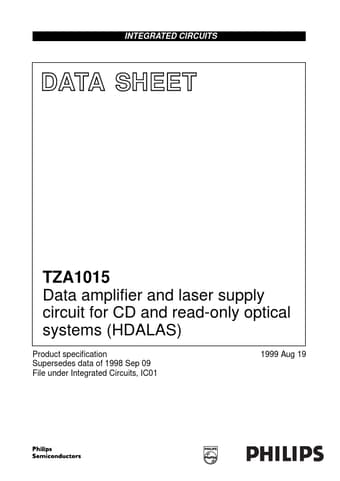

TZA1015 Datasheet Preview — Preview of TZA1015 PDF

Datasheet Details

Part number: TZA1015
Manufacturer: NXP ↗
File Size: 100.88 KB
Datasheet: TZA1015_PhilipsSemiconductors.pdf
Description: Data amplifier and laser supply circuit for CD and read-only optical systems HDALAS

TZA1015 Product details

Description

TZA1015 The TZA1015 is a data amplifier and laser supply circuit for 3-beam pick-up detectors found in a wide range of CD and read-only optical systems.The device contains 6 transimpedance amplifiers to amplify and filter the focus and radial photo diode voltage input signals.The preamplifier forms a versatile, programmable interface from voltage output CD mechanisms to the Philips’ digital signal processor family.The dynamic range of this preamplifier/processor combination can be optimized.

Features

Six input buffer amplifiers with low-pass filtering and virtually no offset.
Universal photodiode IC interface using internal conversion resistors.
RF data amplifier with wide bandwidth designed for data rates up to a maximum of 30×.
Programmable RF gain for CD-A/V, CD-R, CD-R/W and CD-ROM.
