TZA1015T

Data amplifier and laser supply circuit for CD and read-only optical systems HDALAS

TZA1015T Features

* Six input buffer amplifiers with low-pass filtering and virtually no offset

* Universal photodiode IC interface using internal conversion resistors

* RF data amplifier with wide bandwidth designed for data rates up to a maximum of 30×

* Programmable RF gain for CD-A

TZA1015T General Description

TZA1015 The TZA1015 is a data amplifier and laser supply circuit for 3-beam pick-up detectors found in a wide range of CD and read-only optical systems. The device contains 6 transimpedance amplifiers to amplify and filter the focus and radial photo diode voltage input signals. The preamplifier fo.

TZA1015T Datasheet (100.88 KB)

Preview of TZA1015T PDF

Datasheet Details

Part number:

TZA1015T

Manufacturer:

NXP ↗

File Size:

100.88 KB

Description:

Data amplifier and laser supply circuit for cd and read-only optical systems hdalas.

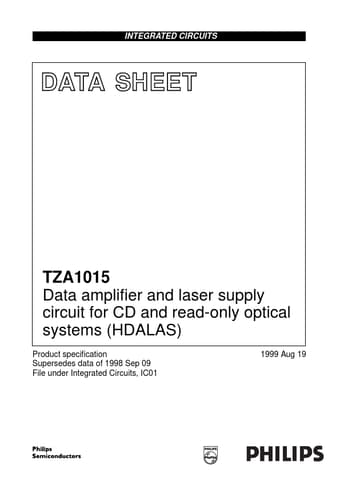

INTEGRATED CIRCUITS DATA SHEET TZA1015 Data amplifier and laser supply circuit for CD and read-only optical systems (HDALAS) Product specification Su.
