TZA1045

Photodiode and amplifier IC for CD and DVD applications

TZA1045 Features

* High frequency RF amplifiers (typical bandwidth = 240 MHz)

* Suitable for all CD (785 nm) and DVD (655 nm) read/write applications

* Four high bandwidth central outputs (A, B, C, and D), four satellite outputs (E, F, G, and H) and one high bandwidth differential output (RFP

TZA1045 General Description

The TZA1045 is a single optical pick-up IC for read/write systems and is suitable for CD and DVD applications. ORDERING INFORMATION TYPE NUMBER TZA1045TS PACKAGE NAME SSOP16T DESCRIPTION plastic shrink small outline package/transparent; 16 leads (straight); body width 4.4 mm TZA1045 The device cont.

TZA1045 Datasheet (92.56 KB)

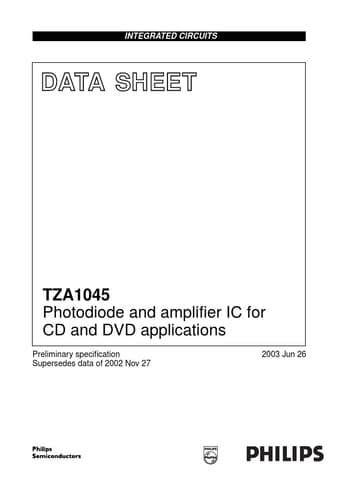

Preview of TZA1045 PDF

Datasheet Details

Part number:

TZA1045

Manufacturer:

NXP ↗

File Size:

92.56 KB

Description:

Photodiode and amplifier ic for cd and dvd applications.
INTEGRATED CIRCUITS DATA SHEET TZA1045 Photodiode and amplifier IC for CD and DVD applications Preliminary specification Supersedes data of 2002 Nov .
