UM10398 - LPC111x/LPC11Cxx I/O User manual

Product Overview

NXP

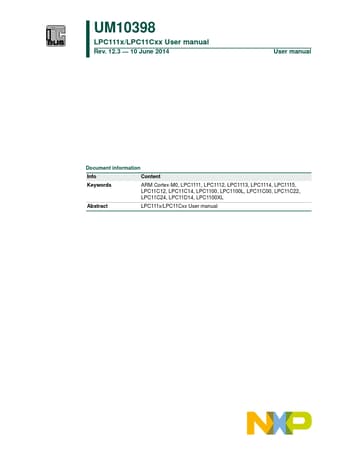

UM10398 LPC111x/LPC11Cxx I/O User manual by NXP - Datasheet Preview — Datasheet preview – UM10398

Datasheet Details

Part number	UM10398
Manufacturer	NXP
File Size	3.03 MB
Description	LPC111x/LPC11Cxx I/O User manual
Datasheet	UM10398 Datasheet
Additional preview pages of the UM10398 datasheet.

Product details

Description

LPC111x/LPC11C1x/LPC11C2x User manual Modifications: Section 5.2 added to describe the requirement to disable all interrupts before calling the power profiles and the requirement to use default mode when calling the IAP functions.12.2 Modifications: 20140324 LPC111x/LPC11C1x/LPC11C2x User manual Parts LPC1112JHI33/203, LPC1114JHN33/333, LPC1115JET48/303, and LPC1115JBD48/303 added.

Features

four general purpose timers, a 10-bit ADC, and up to 42 general purpose I/O pins. On-chip C_CAN drivers and flash In-System Programming tools via C_CAN are included on the LPC11Cxx. In addition, parts LPC11C2x are equipped with an on-chip CAN transceiver. Remark: This user manual covers the LPC111x/LPC11Cxx parts and the LPC11D14 dual-chip part with PCF8576D LCD controller. The LPC111x/LPC11Cxx parts are grouped by the following series and part names (see Table 1 for a feature overview):.
