Triacs

Z0109 Features

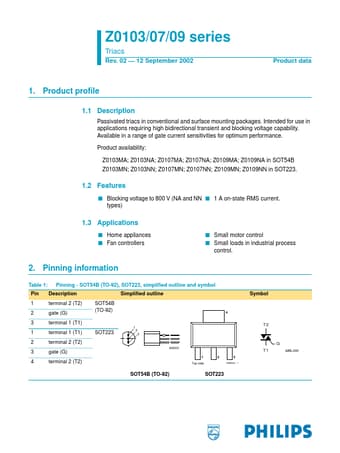

* s Blocking voltage to 800 V (NA and NN s 1 A on-state RMS current. types) 1.3 Applications s Home appliances s Fan controllers s Small motor control s Small loads in industrial process control. 2. Pinning information Table 1: Pin 1 2 3 1 2 3 4 Pinning - SOT54B (TO-92), SOT223, simpliﬁed outline an

Z0109 General Description

Passivated triacs in conventional and surface mounting packages. Intended for use in applications requiring high bidirectional transient and blocking voltage capability. Available in a range of gate current sensitivities for optimum performance. Product availability: Z0103MA; Z0103NA; Z0107MA; Z0107.
