Z0109MA

Standard 1A Triacs

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor STMicroelectronics Z0109MA-1AA2 TRIAC SENS GATE 600V 1A TO92-3 DigiKey 2481 50000 units
$0.07

Z0109MA Datasheet (654.24 KB)

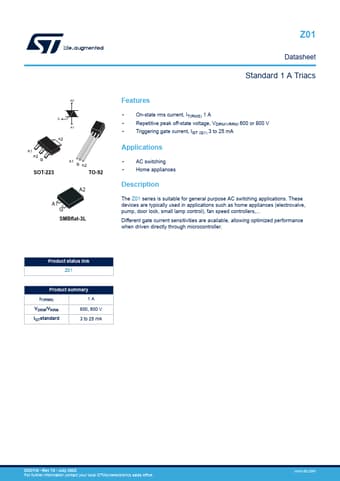

Preview of Z0109MA PDF

Datasheet Details

Part number:

Z0109MA

Manufacturer:

STMicroelectronics ↗

File Size:

654.24 KB

Description:

Standard 1a triacs.

Z0109MA Features

* On-state rms current, IT(RMS) 1 A

* Repetitive peak off-state voltage, VDRM/VRRM 600 or 800 V

* Triggering gate current, IGT (Q1) 3 to 25 mA Applications

* AC switching

* Home appliances Description The Z01 series is suitable for general purpose AC

Z0109MA General Description

The Z01 series is suitable for general purpose AC switching applications. These devices are typically used in applications such as home appliances (electrovalve, pump, door lock, small lamp control), fan speed controllers, Different gate current sensitivities are available, allowing optimized perfo.
