1N5831 - (1N5829 - 1N5831R) Schottky Power Diode

Product Overview

Naina Semiconductor

📥 Download Datasheet

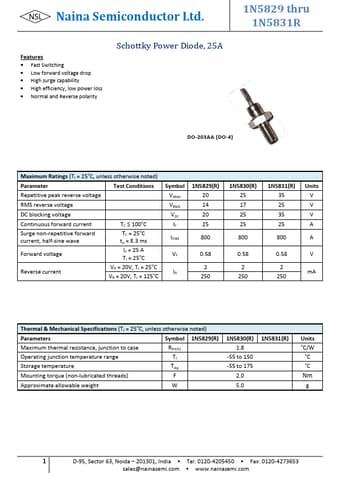

1N5831 (1N5829 - 1N5831R) Schottky Power Diode by Naina Semiconductor - Datasheet Preview — Datasheet preview – 1N5831

Datasheet Details

Part number	1N5831
Manufacturer	Naina Semiconductor
File Size	171.86 KB
Description	(1N5829 - 1N5831R) Schottky Power Diode
Datasheet	1N5831 Datasheet
Note	This datasheet PDF includes multiple part numbers: 1N5831, 1N5829. Please refer to the document for exact specifications by model.
Additional preview pages of the 1N5831 datasheet.

Product details

Features

Fast Switching Low forward voltage drop High surge capability High efficiency, low power loss Normal and Reverse polarity 1N5829 thru 1N5831R DO-203AA (DO-4) Maximum Ratings (TJ = 25oC, unless otherwise noted) Parameter Repetitive peak reverse voltage RMS reverse voltage DC blocking voltage Continuous forward current Surge non-repetitive forward current, half-sine wave Forward voltage Reverse current TC ≤ 100 C TC = 25oC tp = 8.3 ms IF = 25 A.
