JQ1aP-5V, JQ1-12 HIGH ELECTRICAL MECHANICAL NOISE IMMUNITY RELAY

JQ1aP-5V Description

HIGH ELECTRICAL & MECHANICAL NOISE IMMUNITY RELAY VDE JQ RELAYS 20 .787 10 .394 15.6 .614 .

JQ1aP-5V Features

* High electrical noise immunity
* High switching capacity in a compact package
* High sensitivity: 200 mW (1a), 400 mW (1c)
* High surge voltage: 8,000 V between contacts and coil
* UL, CSA, VDE, TÜV, SEMKO approved
* Class B coil insulation type avai

JQ1aP-5V Applications

* Air conditioners
* Refrigerators
* Microwave ovens
* Heaters ORDERING INFORMATION Ex. JQ 1a P B 12 V Contact arrangement Contact capacity Coil insulation class 1a: 1 Form A Nil: Standard 1: 1 Form C P: High capacity Nil: Class E coil insulation B: Class B c

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: JQ1aP-5V, JQ1-12. Please refer to the document for exact specifications by model.

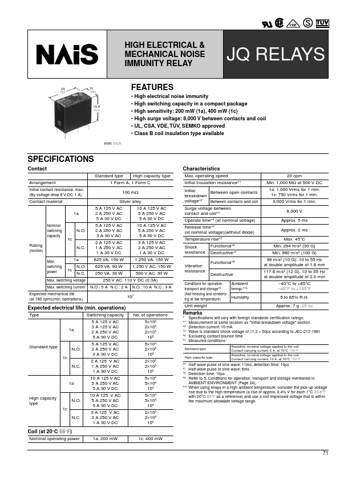

datasheet Preview Page 2 datasheet Preview Page 3
