JQ1a-12V-F, JQ1a-5V-F 1a/1c 5A/10A small power relays

JQ1a-12V-F Description

JQVDE 1a/1c 5A/10A small power JQ RELAYSrelays .

JQ1a-12V-F Features

* High electrical noise immunity
* High switching capacity in a compact package
* High sensitivity: 200 mW (1a), 400 mW (1c)
* High surge voltage: 8,000 V between contacts and coil
* UL, CSA, VDE, SEMKO approved and TÜV available
* Class B coil insulat

JQ1a-12V-F Applications

* Air conditioners
* Refrigerators
* Microwave ovens
* Heaters ORDERING INFORMATION JQ Contact arrangement 1a: 1 Form A 1 : 1 Form C Contact capacity Nil: Standard (5A) P: High capacity (10A) Coil insulation class Nil: Class E coil insulation B: Class B coil insulati

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: JQ1a-12V-F, JQ1a-5V-F. Please refer to the document for exact specifications by model.

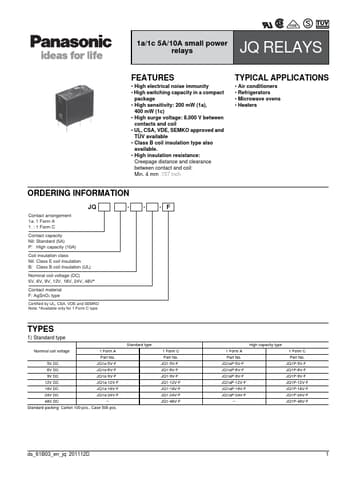

datasheet Preview Page 2 datasheet Preview Page 3
