JQ1a-5V-F 1a/1c 5A/10A small power relays

JQ1a-5V-F Description

JQVDE 1a/1c 5A/10A small power JQ RELAYSrelays .

JQ1a-5V-F Features

* High electrical noise immunity
* High switching capacity in a compact package
* High sensitivity: 200 mW (1a), 400 mW (1c)
* High surge voltage: 8,000 V between contacts and coil
* UL, CSA, VDE, SEMKO approved and TÜV available
* Class B coil insulat

JQ1a-5V-F Applications

* Air conditioners
* Refrigerators
* Microwave ovens
* Heaters ORDERING INFORMATION JQ Contact arrangement 1a: 1 Form A 1 : 1 Form C Contact capacity Nil: Standard (5A) P: High capacity (10A) Coil insulation class Nil: Class E coil insulation B: Class B coil insulati

📥 Download Datasheet

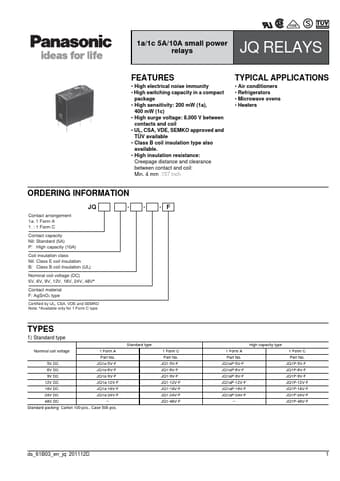

Preview of JQ1a-5V-F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
JQ1a-5V-F
Manufacturer
Panasonic
File Size
520.38 KB
Datasheet
JQ1a-5V-F-Panasonic.pdf
Description
1a/1c 5A/10A small power relays
