NT5CB256M16CP, NT5CB512M8CN Industrial and Automotive DDR3(L) 4Gb SDRAM

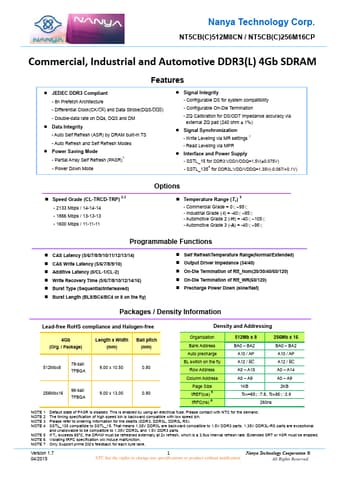

📥 Download Datasheet  Datasheet Preview Page 1

Description

DDR3(L) 4Gb SDRAM NT5CB(C)512M8CN / NT5CB(C)256M16CP Nanya Technology Corp.NT5CB(C)512M8CN / NT5CB(C)256M16CP Commercial, Industrial and Automotive.
The 4Gb Double-Data-Rate-3 (DDR3(L)) DRAM is a high-speed CMOS SDRAM containing 4,294,967,296 bits.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NT5CB256M16CP, NT5CB512M8CN. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
NT5CB256M16CP, NT5CB512M8CN
Manufacturer
Nanya
File Size
3.88 MB
Datasheet
NT5CB512M8CN-Nanya.pdf
Description
Industrial and Automotive DDR3(L) 4Gb SDRAM
Note
This datasheet PDF includes multiple part numbers: NT5CB256M16CP, NT5CB512M8CN.
Please refer to the document for exact specifications by model.

Features

* JEDEC DDR3 Compliant - 8n Prefetch Architecture - Differential Clock(CK/) and Data Strobe(DQS/ ) - Double-data rate on DQs, DQS and DM
* Signal Integrity - Configurable DS for system compatibility - Configurable On-Die Termination - ZQ Calibration for DS/ODT impedance accuracy via ex
