NT5CB64M16AP

1Gb DDR3 SDRAM A-Die

NT5CB64M16AP Features

* and all of the control and address inputs are synchronized with a pair of externally supplied differential clocks. Inputs are latched at the cross point of differential clocks (CK rising and  falling). All I/Os are synchronized with a single ended DQS or differential DQS pair in a source synchrono

NT5CB64M16AP General Description

The 1Gb Double-Data-Rate-3 (DDR3) DRAMs is a high-speed CMOS Double Data Rate32 SDRAM containing 1,073,741,824 bits. It is internally configured as an octal-bank DRAM. The 1Gb chip is organized as 32Mbit x 4 I/O x 8, 16Mbit x 8 I/O x 8 bank or 8Mbit x 16 I/O x 8 bank device. These synchronous device.

NT5CB64M16AP Datasheet (2.27 MB)

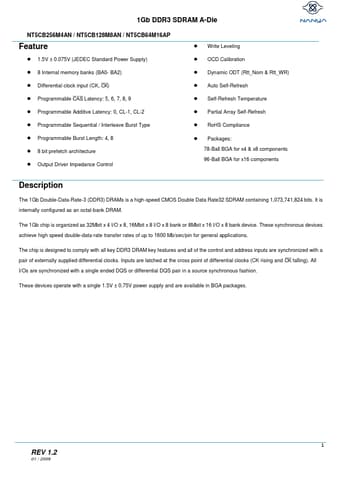

Preview of NT5CB64M16AP PDF

Datasheet Details

Part number:

NT5CB64M16AP

Manufacturer:

Nanya

File Size:

2.27 MB

Description:

1gb ddr3 sdram a-die.
