NHi-15133, NHi-1567 Datasheet - National Hybrid

NHi-15133 Transceivers

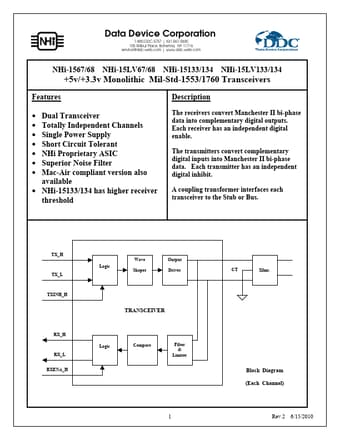

The receivers convert Manchester II bi-phase data into complementary digital outputs. Each receiver has an independent digital enable. The transmitters convert complementary digital inputs into Manchester II bi-phase data. Each transmitter has an independent digital inhibit. A coupling transformer i.

NHi-15133 Features

* Dual Transceiver Totally Independent Channels Single Power Supply Short Circuit Tolerant NHi Proprietary ASIC Superior Noise Filter Mac-Air compliant version also available

* NHi-15133/134 has higher receiver threshold Des

NHi-1567-NationalHybrid.pdf

This datasheet PDF includes multiple part numbers: NHi-15133, NHi-1567. Please refer to the document for exact specifications by model.
