54151A, 54150 Datasheet - National Semiconductor

54151A Data Selectors/Multiplexers

These data selectors multiplexers contain full on-chip decoding to select the desired data source The 150 selects one-of-sixteen data sources the 151A selects one-of-eight data sources The 150 and 151A have a strobe input which must be at a low logic level to enable these devices A high level at the.

54151A Features

* complementary W and Y outputs whereas the 150 has an inverted (W) output only The 151A incorporates address buffers which have symmetrical propagation delay times through the complementary paths This reduces the possibility of transients occurring at the output(s) due to changes made at the select i

54150_NationalSemiconductor.pdf

This datasheet PDF includes multiple part numbers: 54151A, 54150. Please refer to the document for exact specifications by model.

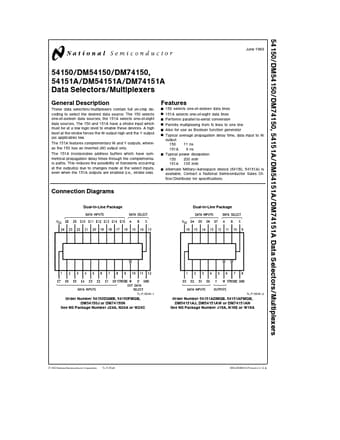

54151A Datasheet Preview Page 2 54151A Datasheet Preview Page 3

Datasheet Details

Part number:

54151A, 54150

Manufacturer:

National Semiconductor

File Size:

182.73 KB

Description:

Data selectors/multiplexers.

Note:

This datasheet PDF includes multiple part numbers: 54151A, 54150.
Please refer to the document for exact specifications by model.
