54AC378 - Parallel D Register

National Semiconductor

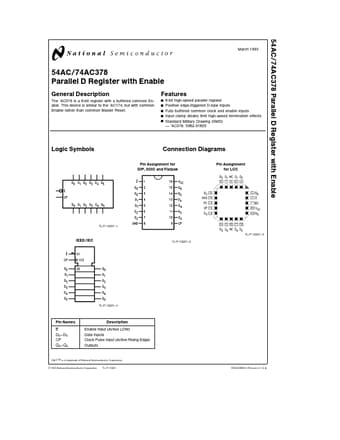

54AC378 Datasheet Preview — Preview of 54AC378 PDF

Datasheet Details

Part number	54AC378
Manufacturer	National Semiconductor ↗
File Size	184.65 KB
Description	Parallel D Register
Datasheet	54AC378_NationalSemiconductor.pdf

54AC378 Product details

Description

The ’AC378 is a 6-bit register with a buffered common Enable This device is similar to the ’AC174 but with common Enable rather than common Master Reset

Features

Y Y Y Y Y 6-bit high-speed parallel register Positive edge-triggered D-type inputs Fully buffered common clock and enable inputs Input clamp diodes limit high-speed termination effects Standard Military Drawing (SMD) ’AC378 5962-91605 Logic Symbols Connection Diagrams Pin Assignment for DIP SOIC and Flatpak Pin Assignment for LCC TL F 10231.
1 TL F 10231.
3 IEEE IEC TL F 10231.
2 TL F 10231.
4 Pin Names E D0.
D5 CP Q0.
Q5.
