54F219

64-Bit Random Access Memory

54F219 Features

* non-inverting rather than inverting data outputs Features Y TRI-STATE outputs for data bus applications Y Buffered inputs minimize loading Y Address decoding on-chip Y Diode clamped inputs minimize ringing Y Available in SOIC (300 mil only) Commercial 74F219PC 74F219SC (Note 1) 74F219SJ (Note 1)

54F219 General Description

The ’F219 is a high-speed 64-bit RAM organized as a 16-word by 4-bit array Address inputs are buffered to minimize loading and are fully decoded on-chip The outputs are TRI-STATE and are in the high-impedance state whenever the Chip Select (CS) input is HIGH The outputs are active only in the Read m.

54F219 Datasheet (360.98 KB)

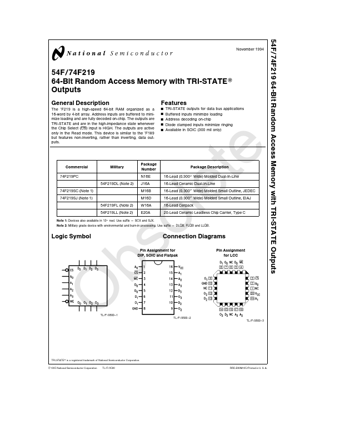

Preview of 54F219 PDF

Datasheet Details

Part number:

54F219

Manufacturer:

National Semiconductor

File Size:

360.98 KB

Description:

64-bit random access memory.
Obsolete 54F 74F219 64-Bit Random Access Memory with TRI-STATE Outputs November 1994 54F 74F219 64-Bit Random Access Memory with TRI-STATE Outputs .
