54F240 - Octal Buffers/Line Drivers

54F240 Description

54F 74F24054F 74F24154F 74F244 Octal Buffers Line Drivers with TRI-STATE Outputs Obsolete May 1995 54F 74F24054F 74F24154F 74F244 Octal Buffers.
The ’F240 ’F241 and ’F244 are octal buffers and line drivers designed to be employed as memory and address drivers clock drivers and bus-oriented tran.

54F240 Features

* Y TRI-STATE outputs drive bus lines or buffer memory address registers Y Outputs sink 64 mA (48 mA mil) Y 12 mA source current Y Input clamp diodes limit high-speed termination effects Y Guaranteed 4000V minimum ESD protection Commercial 74F240PC 74F240SC (Note 1) 74F240SJ (Note 1) 74F241PC 74F241S

📥 Download Datasheet

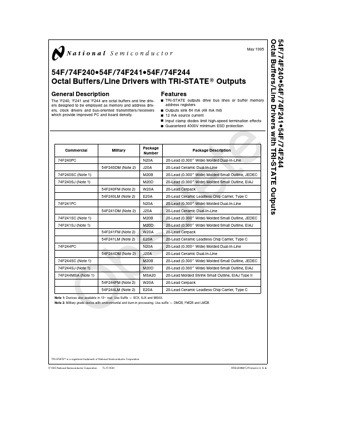

Preview of 54F240 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
54F240
Manufacturer
National Semiconductor
File Size
386.47 KB
Datasheet
54F240_NationalSemiconductor.pdf
Description
Octal Buffers/Line Drivers
