ADC0802 Datasheet - National Semiconductor

ADC0802 8-Bit uP Compatible A/D Converters

The ADC0801, ADC0802, ADC0803, ADC0804 and ADC0805 are CMOS 8-bit successive approximation A/D converters that use a differential potentiometric ladder * similar to the 256R products. These converters are designed to allow operation with the NSC800 and INS8080A derivative control bus with TR.

ADC0802 Features

* n Compatible with 8080 µP derivatives

* no interfacing logic needed - access time - 135 ns n Easy interface to all microprocessors, or operates “stand alone” ± 1⁄4 LSB, ± 1⁄2 LSB and ± 1 LSB 100 µs Connection Diagram ADC080X Dual-In-Line and Small Outline (SO) Packages DS005671-30 See Or

ADC0802 Datasheet (1.09 MB)

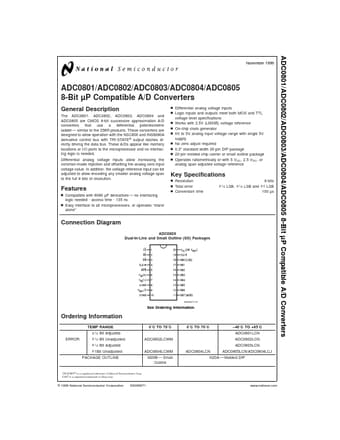

Preview of ADC0802 PDF
ADC0802 Datasheet Preview Page 2 ADC0802 Datasheet Preview Page 3

Datasheet Details

Part number:

ADC0802

Manufacturer:

National Semiconductor

File Size:

1.09 MB

Description:

8-bit up compatible a/d converters.
