ADC10221 - 10-Bit 15MSPS 98mW A/D Converter

Product Overview

National Semiconductor

Part number	ADC10221
Manufacturer	National Semiconductor
File Size	414.65 KB
Description	10-Bit 15MSPS 98mW A/D Converter

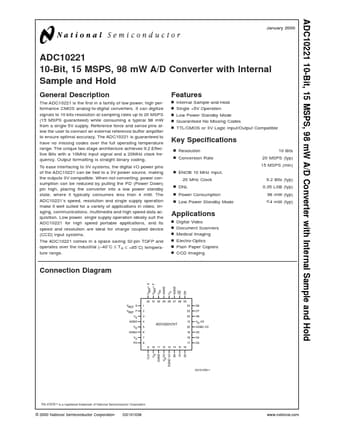

Datasheet	ADC10221 Datasheet
Additional preview pages of the ADC10221 datasheet.

The ADC10221 is the first in a family of low power, high performance CMOS analog-to-digital converters.

n n n n n Internal Sample-and-Hold Single +5V Operation Low Power Standby Mode Guaranteed No Missing Codes TTL/CMOS or 3V Logic Input/Output Compatible Key Specifications n Resolution n Conversion Rate n ENOB 10 MHz Input, 20 MHz Clock n DNL n Power Consumption n Low Power Standby Mode 9.2 Bits (typ) 0.35 LSB (typ) 98 mW (typ) 10 Bits 20 MSPS (typ) 15 MSPS (min) < 4 mW (typ).
