ADC102S051 Datasheet - Texas Instruments

ADC102S051 2-Channel 200ksps to 500ksps 10-Bit A/D Converter

The ADC102S051 is a low-power, two-channel CMOS 10-bit analog-to-digital converter with a highspeed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC102S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The conve.

ADC102S051 Features

* 1

* 2 Specified Over a Range of Sample Rates.

* Two Input Channels

* Variable Power Management

* Single Power Supply with 2.7V - 5.25V Range KEY SPECIFICATIONS

* DNL: ± 0.13 LSB (typ)

* INL: + 0.20/

* 0.1 LSB (typ)

* SNR: 61.8 dB (typ)

ADC102S051-etcTI.pdf

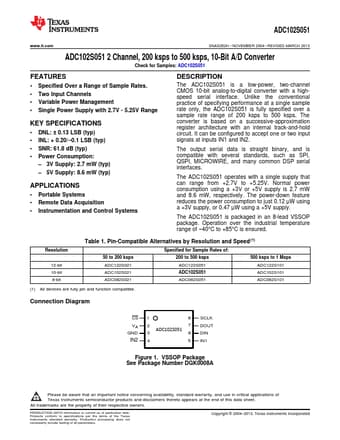

Preview of ADC102S051 PDF
ADC102S051 Datasheet Preview Page 2 ADC102S051 Datasheet Preview Page 3

Datasheet Details

Part number:

ADC102S051

Manufacturer:

Texas Instruments ↗

File Size:

1.34 MB

Description:

2-channel 200ksps to 500ksps 10-bit a/d converter.
