ADC121S101

1MSPS/ 12-/10-/8-Bit A/D Converters

National Semiconductor

ADC121S101 Features

* n n n n n Variable power management Packaged in 6-lead SOT-23 Power supply used as reference Single +2.7V to +5.25V supply operation SPI™/QSPI™/MICROWIRE™/DSP compatible Key Specifications n n n n n Resolution with no Missing Codes Conversion Rate DNL INL Power Consumption

* 3V Supply

ADC121S101 General Description

The ADC121S101, ADC101S101, and ADC081S101 are low power, monolithic CMOS 12-, 10- and 8-bit analog-to-digital converters that operate at 1 MSPS. Each device is based on a successive approximation register architecture with internal track-and-hold. The serial interface is compatible with several sta.

ADC121S101 Datasheet (504.03 KB)

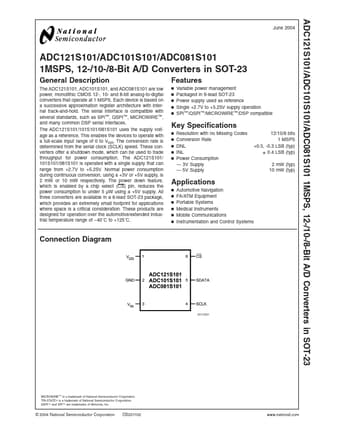

ADC121S101 Datasheet Preview — Preview of ADC121S101 PDF

Datasheet Details

Part number:

ADC121S101

Manufacturer:

National Semiconductor

File Size:

504.03 KB

Description:

1msps/ 12-/10-/8-bit a/d converters.
ADC121S101/ADC101S101/ADC081S101 1MSPS, 12-/10-/8-Bit A/D Converters in SOT-23 June 2004 ADC121S101/ADC101S101/ADC081S101 1MSPS, 12-/10-/8-Bit A/D C.
