ADC121S625 - Micro Power Sampling A/D Converter

ADC121S625 Description

ADC121S625 www.ti.com SNAS294B * MAY 2005 * REVISED MARCH 2013 ADC121S625 12-Bit, 50 ksps to 200 ksps, Differential Input, Micro Po.
The ADC121S625 is a 12-bit, 50 ksps to 200 ksps sampling Analog-to-Digital (A/D) converter that features a fully differential, high impedance analog i.

ADC121S625 Features

* 1
* 2 True Differential Inputs
* Ensured Performance from 50ksps to 200ksps
* External Reference
* High AC Common-Mode Rejection

ADC121S625 Applications

* Automotive Navigation
* Portable Systems
* Medical Instruments
* Instrumentation and Control Systems
* Motor Control
* Direct Sensor Interface KEY SPECIFICATIONS
* Conversion Rate 50 to 200 ksps
* Offset Error 0.4 LSB (typ)

📥 Download Datasheet

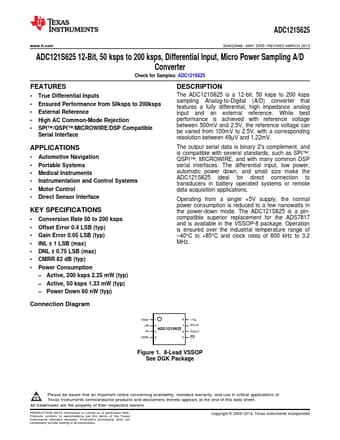

Preview of ADC121S625 PDF
datasheet Preview Page 2 datasheet Preview Page 3
