CD4031BC

64-Stage Static Shift Register

CD4031BC Features

* Y Y Y Y Wide supply voltage range High noise immunity Low power TTL compatibility Fully static operation Y Y Y Y Y Y 3 0V to 15V 0 45 VDD (typ ) fan out of 2 driving 74L or 1 driving 74LS DC to 8 MHz VDD e 10V (typ ) Fully buffered clock input 5 pF (typ ) input capacitance Single phase clockin

CD4031BC General Description

The CD4031BM CD4031BC is an integrated complementary MOS (CMOS) 64-stage fully static shift register Two data inputs DATA IN and RECIRCULATE IN and a MODE CONTROL input are provided Data at the DATA input (when MODE CONTROL is low) or data at the RECIRCULATE input (when MODE CONTROL is high) which m.

CD4031BC Datasheet (145.98 KB)

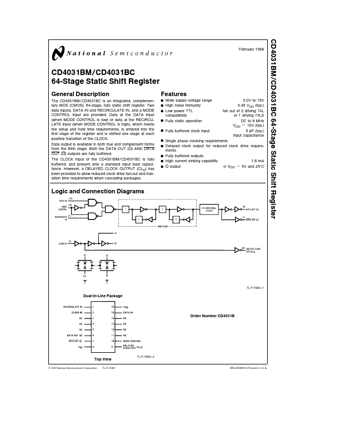

Preview of CD4031BC PDF

Datasheet Details

Part number:

CD4031BC

Manufacturer:

National Semiconductor

File Size:

145.98 KB

Description:

64-stage static shift register.
