CD4031BMS Datasheet, Register, Intersil Corporation

CD4031BMS Features

  • Register
  • High Voltage Type (20V Rating)
  • Fully Static Operation: DC to 12MHz (typ.) at VDD VSS = 15V
  • Standard TTL Drive Capability on Q Output
  • Recirculatio

PDF File Details

Part number:

CD4031BMS

Manufacturer:

Intersil Corporation

File Size:

97.64kb

Download:

📄 Datasheet

Description:

Cmos 64-stage static shift register. The CD4031BMS is a static shift register that contains 64 Dtype, master-slave flip-flop stages and one stage which is a D-type master fl

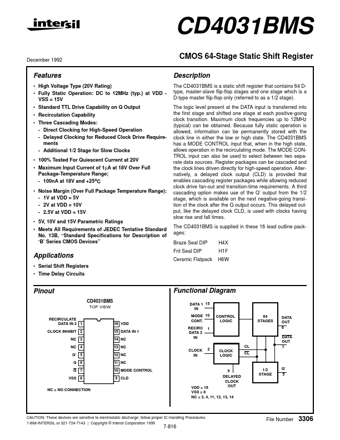

Datasheet Preview: CD4031BMS 📥 Download PDF (97.64kb)
Page 2 of CD4031BMS Page 3 of CD4031BMS

CD4031BMS Application

  • Applications
  • Serial Shift Registers
  • Time Delay Circuits Pinout CD4031BMS TOP VIEW RECIRCULATE DATA IN 2 1 CLOCK INHIBIT 2 NC 3
