CGS3322, CGS3321 Datasheet - National Semiconductor

CGS3322 CMOS Crystal Clock Generators

These devices are designed for Clock Generation and Support (CGSTM) applications up to 110 MHz. The CGS332x series of devices are crystal controlled CMOS oscillators requiring a minimum of external ccomponents. The 332x devices provide selectable output divide ratio. The circuit is designed to opera.

CGS3322 Features

* National's CGS family of devices for high frequency clock source applications

* Crystal frequency operation range: fundamental: 10 MHz to 110 MHz typical 3rd or 5th overtone: 10 MHz to 95 MHz

* 1000V ESO protection on OSC_IN and OSC_OUT pins. 2000V ESO protection on all ot

CGS3321-NationalSemiconductor.pdf

This datasheet PDF includes multiple part numbers: CGS3322, CGS3321. Please refer to the document for exact specifications by model.

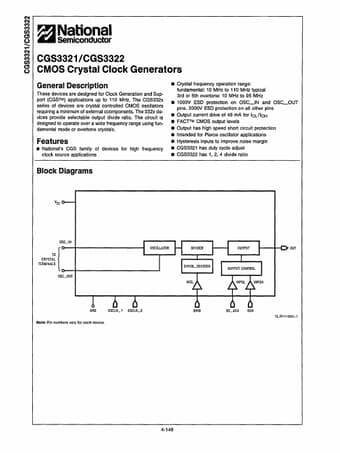

CGS3322 Datasheet Preview Page 2 CGS3322 Datasheet Preview Page 3

Datasheet Details

Part number:

CGS3322, CGS3321

Manufacturer:

National Semiconductor

File Size:

148.86 KB

Description:

Cmos crystal clock generators.

Note:

This datasheet PDF includes multiple part numbers: CGS3322, CGS3321.
Please refer to the document for exact specifications by model.
