CLC402 Datasheet - National Semiconductor

CLC402, Low-Gain OpAmp

CLC402 Low-Gain Op Amp with Fast 14-Bit Settling June 1999 N CLC402 Low-Gain Op Amp with Fast 14-Bit Settling General .
Features s s s s s 0.

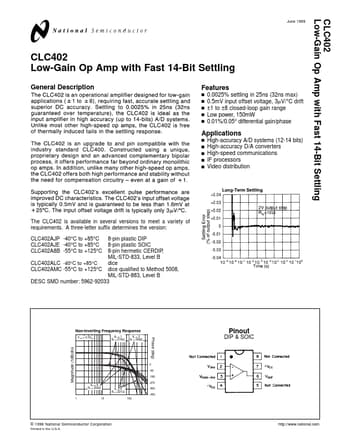

datasheet Preview Page 1 from Datasheet4u.com

CLC402_NationalSemiconductor.pdf

CLC402 Datasheet Preview — Preview of CLC402 PDF

Datasheet Details

Part number:

CLC402

Manufacturer:

National Semiconductor

File Size:

394.94 KB

Description:

Low-Gain OpAmp

Features

* s s s s s 0.0025% settling in 25ns (32ns max) 0.5mV input offset voltage, 3µV/°C drift ±1 to ±8 closed-loop gain range Low power, 150mW 0.01%/0.05° differential gain/phase High-accuracy A/D systems (12-14 bits) High-accuracy D/A converters High-speed communications IF processors Video distribution

Applications

* s s s s s The CLC402 is available in several versions to meet a variety of requirements. A three-letter suffix determines the version: CLC402AJP -40°C to +85°C CLC402AJE -40°C to +85°C CLC402A8B -55°C to +125°C 8-pin plastic DIP 8-pin plastic SOIC 8-pin hermetic CERDIP, MIL-STD-833, Level B dice CL
