DAC101C085

12-Bit Micro Power Digital-to-Analog Converter

DAC101C085 Features

* Guaranteed Monotonicity to 12-bits Low Power Operation: 156 µA max @ 3.3V Extended power supply range (+2.7V to +5.5V) I2C-Compatible 2-wire Interface which supports standard (100kHz), fast (400kHz), and high speed (3.4MHz) modes

* Rail-to-Rail Voltage Output

* Very s

DAC101C085 General Description

The DAC121C081 is a 12-bit, single channel, voltage-output digital-to-analog converter (DAC) that operates from a +2.7V to 5.5V supply. The output amplifier allows rail-to-rail output swing and has an 8.5usec settling time. The DAC121C081 uses the supply voltage as the reference to provide the wides.

DAC101C085 Datasheet (717.34 KB)

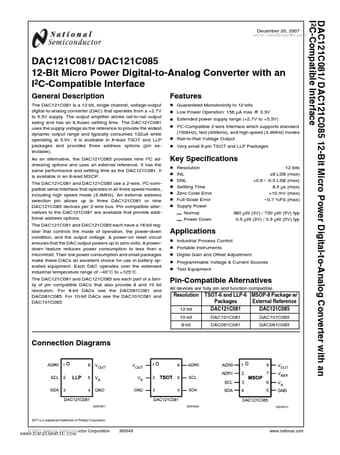

Preview of DAC101C085 PDF

Datasheet Details

Part number:

DAC101C085

Manufacturer:

National Semiconductor

File Size:

717.34 KB

Description:

12-bit micro power digital-to-analog converter.
DAC121C081/ DAC121C085 12-Bit Micro Power Digital-to-Analog Converter with an I2C-Compatible Interface www.DataSheet4U.com December 20, 2007 DAC121.
