DAC101C081

10-Bit Micro Power Digital-to-Analog Converter

DAC101C081 Features

* 1 Ensured Monotonicity to 10-bits

* Low Power Operation: 156-µA maximum at 3.3 V

* Extended Power Supply Range (2.7 V to 5.5 V)

* I2C-Compatible 2-Wire Interface Which Supports Standard (100-kHz), Fast (400-kHz), and HighSpeed (3.4-MHz) Modes

* Rail-to-Rail V

DAC101C081 General Description

The DAC101C081 device is a 10-bit, single channel, voltage-output digital-to-analog converter (DAC) that operates from a 2.7 V to 5.5 V supply. The output amplifier allows rail-to-rail output swing and has an 6µsec settling time. The DAC101C081 uses the supply voltage as the reference to provide the.

DAC101C081 Datasheet (1.84 MB)

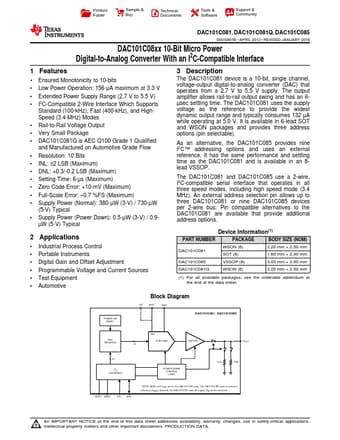

Preview of DAC101C081 PDF

Datasheet Details

Part number:

DAC101C081

Manufacturer:

Texas Instruments ↗

File Size:

1.84 MB

Description:

10-bit micro power digital-to-analog converter.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community DAC101C081, DAC101C081Q, DAC101C085 SNVS801B

* APRIL.
