DM54L04

Hex Inverting Gate

DM54L04 General Description

This device contains six independent gates each of which performs the logic INVERT function Connection Diagram Dual-In-Line Package TL F 6616

* 1 Order Number DM54L04J or DM54L04W See NS Package Number J14A or W14B Function Table YeA Input A L H H e High Logic Level L e Low Logic Level .

DM54L04 Datasheet (82.52 KB)

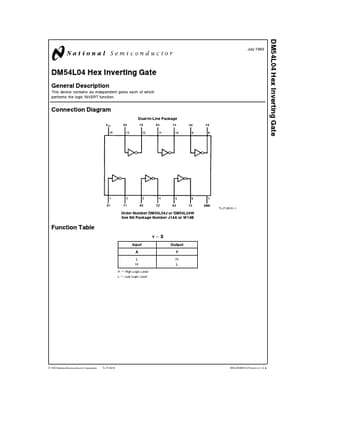

Preview of DM54L04 PDF

Datasheet Details

Part number:

DM54L04

Manufacturer:

National Semiconductor

File Size:

82.52 KB

Description:

Hex inverting gate.
