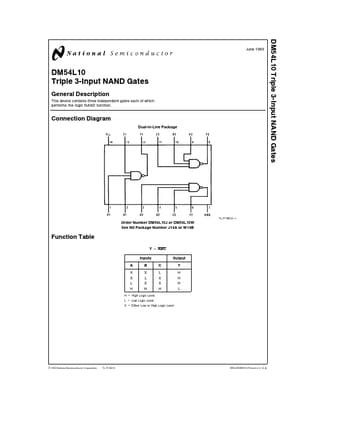

This device contains three independent gates each of which performs the logic NAND function Connection Diagram Dual-In-Line Package TL F 6619 1 Order Number DM54L10J or DM54L10W See NS Package Number J14A or W14B Function Table Y e ABC Inputs A X X L H B X L X H C L X X H Output Y H H H L H e High Logic Level L e Low Logic Level X e Either Low or High Logic Level C1995 National Semiconductor Corporation TL F 6619 RRD-B30M105 Printed in U S A Absolute Maximum Ratings (Note) If
