DM54LS241 - Octal TRI-STATE Buffers/Line Drivers/Line Receivers

National Semiconductor

📥 Download Datasheet

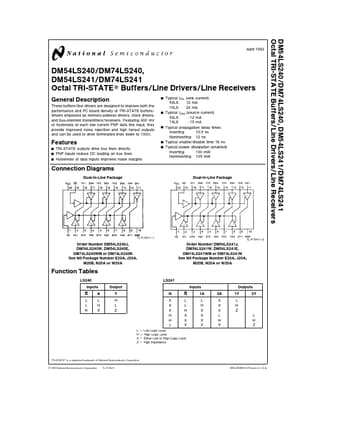

DM54LS241 Datasheet Preview — Preview of DM54LS241 PDF

Datasheet Details

Part number: DM54LS241
Manufacturer: National Semiconductor
File Size: 142.98 KB
Datasheet: DM54LS241_NationalSemiconductor.pdf
Description: Octal TRI-STATE Buffers/Line Drivers/Line Receivers

DM54LS241 Product details

Description

These buffers line drivers are designed to improve both the performance and PC board density of TRI-STATE buffers drivers employed as memory-address drivers clock drivers and bus-oriented transmitters receivers Featuring 400 mV of hysteresis at each low current PNP data line input they provide improved noise rejection and high fanout outputs and can be used to drive terminated lines down to 133X Y Y Y

Features

Y Y Y Y Y TRI-STATE outputs drive bus lines directly PNP inputs reduce DC loading on bus lines Hysteresis at data inputs improves noise margins Typical IOL (sink current) 54LS 12 mA 74LS 24 mA Typical IOH (source current) b 12 mA 54LS b 15 mA 74LS Typical propagation delay times Inverting 10 5 ns Noninverting 12 ns Typical enable disable time 18 ns Typical power dissipation (enabled) Inverting 130 mW Noninverting 135 mW Connection Diagrams Dual-In-Line Package Dual-In-Line Package TL F 6411.
