DM54LS245

TRI-STATE Octal Bus Transceiver

DM54LS245 Features

* Y Y Y Bi-Directional bus transceiver in a high-density 20-pin package TRI-STATE outputs drive bus lines directly PNP inputs reduce DC loading on bus lines Hysteresis at bus inputs improve noise margins Typical propagation delay times port-to-port 8 ns Typical enable disable times 17 ns IOL (sink

DM54LS245 General Description

These octal bus transceivers are designed for asynchronous two-way communication between data buses The control function implementation minimizes external timing requirements The device allows data transmission from the A bus to the B bus or from the B bus to the A bus depending upon the logic level.

DM54LS245 Datasheet (139.96 KB)

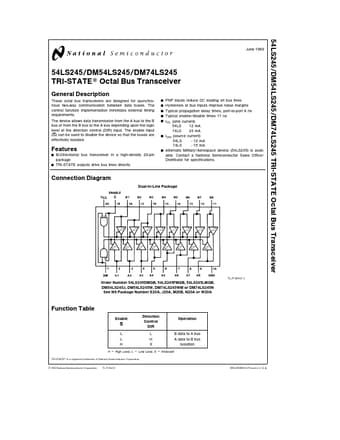

Preview of DM54LS245 PDF

Datasheet Details

Part number:

DM54LS245

Manufacturer:

National Semiconductor

File Size:

139.96 KB

Description:

Tri-state octal bus transceiver.
54LS245 DM54LS245 DM74LS245 TRI-STATE Octal Bus Transceiver June 1989 54LS245 DM54LS245 DM74LS245 TRI-STATE Octal Bus Transceiver General Descriptio.
