DM54LS258B Datasheet, Selectors/multiplexers, National Semiconductor

DM54LS258B Features

  • Selectors/multiplexers Y TRI-STATE versions LS157 and LS158 with same pinouts Y Schottky-clamped for significant improvement in A-C performance Y Provides bus interface from multiple sources in highperformanc

PDF File Details

Part number:

DM54LS258B

Manufacturer:

National Semiconductor

File Size:

163.71kb

Download:

📄 Datasheet

Description:

Tri-state quad 2-data selectors/multiplexers. These Schottky-clamped high-performance multiplexers feature TRI-STATE outputs that can interface directly with data lines of bus-org

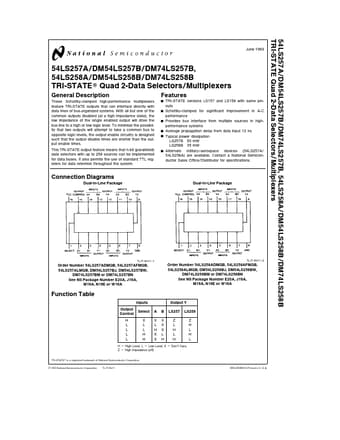

Datasheet Preview: DM54LS258B 📥 Download PDF (163.71kb)
