DM54LS259 Datasheet, Latches, National Semiconductor

DM54LS259 Features

  • Latches Y Y Y Y Y Y Y Y Y Y 8-Bit parallel-out storage register performs serial-to-parallel conversion with storage Asynchronous parallel clear Active high decoder Enable disable input simpl

PDF File Details

Part number:

DM54LS259

Manufacturer:

National Semiconductor

File Size:

153.56kb

Download:

📄 Datasheet

Description:

8-bit addressable latches. These 8-bit addressable latches are designed for general purpose storage applications in digital systems Specific uses include workin

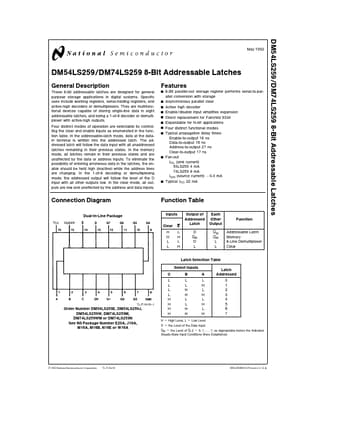

Datasheet Preview: DM54LS259 📥 Download PDF (153.56kb)
Page 2 of DM54LS259 Page 3 of DM54LS259

DM54LS259 Application

  • Applications in digital systems Specific uses include working registers serial-holding registers and active-high decoders or demultiplexers They are
