DM54LS365A - Hex TRI-STATE Buffers

National Semiconductor

📥 Download Datasheet

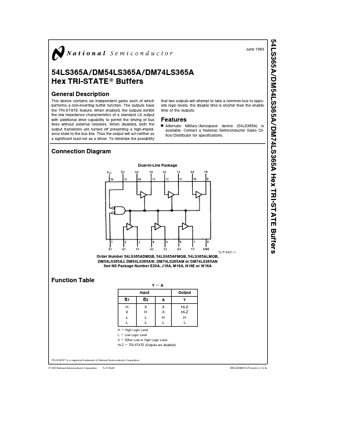

DM54LS365A Datasheet Preview — Preview of DM54LS365A PDF

Datasheet Details

Part number: DM54LS365A
Manufacturer: National Semiconductor
File Size: 194.82 KB
Datasheet: DM54LS365A-NationalSemiconductor.pdf
Description: Hex TRI-STATE Buffers

DM54LS365A Product details

Description

This device contains six independent gates each of which performs a non-inverting buffer function The outputs have the TRI-STATE feature When enabled the outputs exhibit the low impedance characteristics of a standard LS output with additional drive capability to permit the driving of bus lines without external resistors When disabled both the output transistors are turned off presenting a high-impedance state to the bus line Thus the output will act neither as a significant load nor as a driver

Features

Y Alternate Military Aerospace device (54LS365A) is available Contact a National Semiconductor Sales Office Distributor for specifications Connection Diagram Dual-In-Line Package TL F 6427.
1 Order Number 54LS365ADMQB 54LS365AFMQB 54LS365ALMQB DM54LS365AJ DM54LS365AW DM74LS265AM or DM74LS365AN See NS Package Number E20A J16A M16A N16E or W16A Function Table YeA Input G1 H X L L G2 X H L L A X X H L Output Y Hi-Z Hi-Z H L H e High Logic Level L e Low Logic Level X e Either Low or Hig.
