DM7427

DM7427 Triple 3-Input NOR Gates

DM7427 General Description

This device contains three independent gates each of which performs the logic NOR function Connection Diagram Dual-In-Line Package TL F 6509

* 1 Order Number DM7427N See NS Package Number N14A Function Table YeAaBaC Inputs A L X X H B L X H X C L H X X Output Y H L L L H e High Logic Le.

DM7427 Datasheet (80.61 KB)

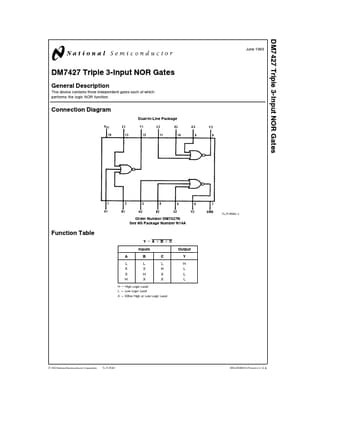

Preview of DM7427 PDF

Datasheet Details

Part number:

DM7427

Manufacturer:

National Semiconductor

File Size:

80.61 KB

Description:

Dm7427 triple 3-input nor gates.
