DM74279

Quad Set-Reset Latch

DM74279 General Description

This device contains four independent set-reset type flipflops with one Q output each Connection Diagram Dual-In-Line Package TL F 9785

* 1 Order Number 54279DMQB 54279FMQB or DM74279N NS Package Number J16A N16E or W16A Pin Names Rn Sn Q Description Reset Inputs (Active Low) Set Inputs.

DM74279 Datasheet (108.15 KB)

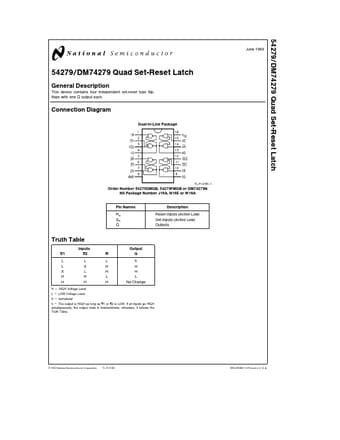

Preview of DM74279 PDF

Datasheet Details

Part number:

DM74279

Manufacturer:

National Semiconductor

File Size:

108.15 KB

Description:

Quad set-reset latch.
