DM7493A, DM7490A, Decade and Binary Counters

DM5490 DM7490A DM7493A Decade and Binary Counters July 1992 DM5490 DM7490A DM7493A Decade and Binary Counters General .
Each of these monolithic counters contains four masterslave flip-flops and additional gating to provide a divide-bytwo counter and a three-stage binar.

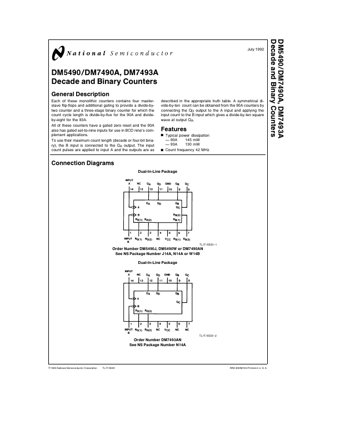

datasheet Preview Page 1 from Datasheet4u.com

DM7490A-NationalSemiconductor.pdf

DM7493A Datasheet Preview — This datasheet PDF includes multiple part numbers: DM7493A, DM7490A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DM7493A, DM7490A

Manufacturer:

National Semiconductor

File Size:

90.33 KB

Description:

Decade and Binary Counters

Note:

This datasheet PDF includes multiple part numbers: DM7493A, DM7490A.
Please refer to the document for exact specifications by model.

Features

* Y Typical power dissipation 90A 145 m

Applications

* To use their maximum count length (decade or four-bit binary) the B input is connected to the QA output The input count pulses are applied to input A and the outputs are as described in the appropriate truth table A symmetrical divide-by-ten count can be obtained from the 90A counters by connecting
