DM7806 - high speed MOS to TTL level converters

This page provides the datasheet information for the DM7806, a member of the DM7802 high speed MOS to TTL level converters family.

Description

br>

The DM7802/DM8802, DM7806/DM8806 are high speed MOS to TTL level converters.

These circuits act as an interface level converter between MOS -and TTL logic devices.

It consists of two 1-input converters with common strobe input to inhibit "0" entry when strobe is high.

Features

  • Very low output impedance - high drive ability.
  • High impedance output state which allows many outputs to be connected to a common bus line.
  • Average power dissipation 110' mW per converter logic and connection diagrams c :s:: aoI . N C :s:: 00 o00 N C :s:: . aoec. . n. I. . :s:: 00 oe0n0 IN. (.

📥 Download Datasheet

Datasheet preview – DM7806

Datasheet Details

Part number DM7806
Manufacturer National Semiconductor
File Size 168.10 KB
Description high speed MOS to TTL level converters
Datasheet download datasheet DM7806 Datasheet
Additional preview pages of the DM7806 datasheet.

📁 Similar Datasheet

  • DM7820 - Versatile High Speed Digital I/O (RTD)
  • DM7820HR - Versatile High Speed Digital I/O (RTD)
  • DM78L05 - LOW CURRENT POSITIVE VOLTAGE REGULATOR (Dc Components)
  • DM78L05A - LOW CURRENT POSITIVE VOLTAGE REGULATOR (Dc Components)
  • DM78L06 - LOW CURRENT POSITIVE VOLTAGE REGULATOR (Dc Components)
  • DM78L06A - LOW CURRENT POSITIVE VOLTAGE REGULATOR (Dc Components)
  • DM78L08 - LOW CURRENT POSITIVE VOLTAGE REGULATOR (Dc Components)
  • DM78L08A - LOW CURRENT POSITIVE VOLTAGE REGULATOR (Dc Components)
  • DM78L09 - LOW CURRENT POSITIVE VOLTAGE REGULATOR (Dc Components)
  • DM78L09A - LOW CURRENT POSITIVE VOLTAGE REGULATOR (Dc Components)
Other Datasheets by National Semiconductor
  • DM7800 - Dual Voltage Translator
  • DM7802 - high speed MOS to TTL level converters
  • DM7810 - quad 2-input TTL-MOS interface gate
  • DM7811 - quad 2-input TTL-MOS interface gate
  • DM7812 - TTL-MOS hex inverter
  • DM7819 - quad 2-input TTL-MOS AND gate
  • DM7820 - dual line receiver
  • DM7820A - dual line receiver

Full PDF Text Transcription

Click to expand full text

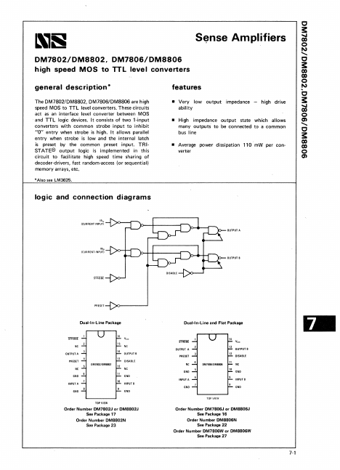

S~nse Amplifiers OM7802/0M8802. OM7806/0M,8806 high speed MOS to TTL level converters general description* The DM7802/DM8802, DM7806/DM8806 are high speed MOS to TTL level converters. These circuits act as an interface level converter between MOS -and TTL logic devices. It consists of two 1-input converters with common strobe input to inhibit "0" entry when strobe is high. It allows parallel entry when strobe is low and the internal latch is preset by the common preset input. TR 1STATE@ output logic is implemented in this circuit to facilitate high speed time sharing of decoder-drivers, fast random-access (or sequential) memory arrays, etc. • Also see LM3625.
