DM7810

quad 2-input TTL-MOS interface gate

DM7810 General Description

These Series 54/74 compatible gates are high output voltage versions of the DM5401/DM7401 (SN 5401 /SN 740 1), DM5403/DM7403 (SN 5403/SN 7403), and DM5405/DM7405 (SN5405/SN7405). Their open-collector outputs may be "pulled-up" to +14 volts in the logical "1" state thus providing guaranteed mteFface .

DM7810 Datasheet (128.78 KB)

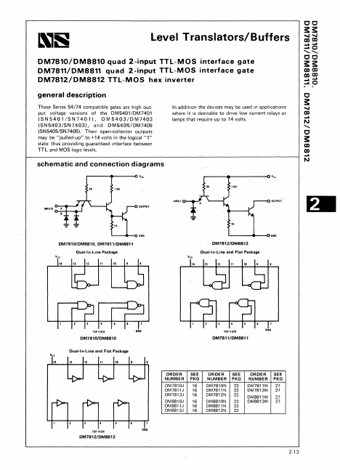

Preview of DM7810 PDF

Datasheet Details

Part number:

DM7810

Manufacturer:

National Semiconductor

File Size:

128.78 KB

Description:

Quad 2-input ttl-mos interface gate.
Level Translators/Buffers DM7810/DM8810 quad 2-input TTL-MOS interface gate DM78111DM8811 quad 2-input TTL-MOS interface gate DM7812/DM8812 TTL-MOS h.
